      Fuse Type Disconnector — HR6

                Back



























    Overview



        HR6 Series fuse disconnector is used in power switch, disconnector and emergency switch for manual infrequent operation in distribution circuit and motor circuit with high short-circuit current of 50Hz rated, operating voltage up to 660V and agreed heating current up to 630A, in order to protect the circuit from short current.







    Parameter

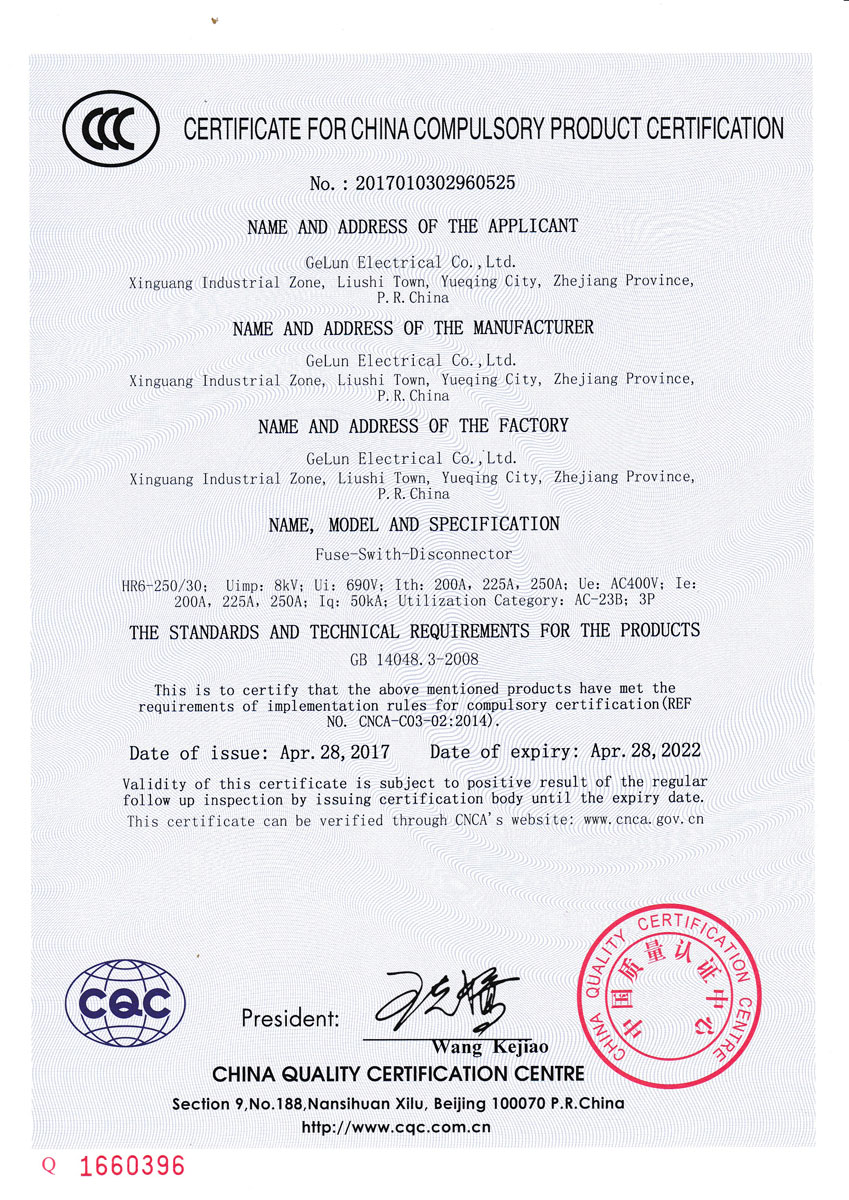

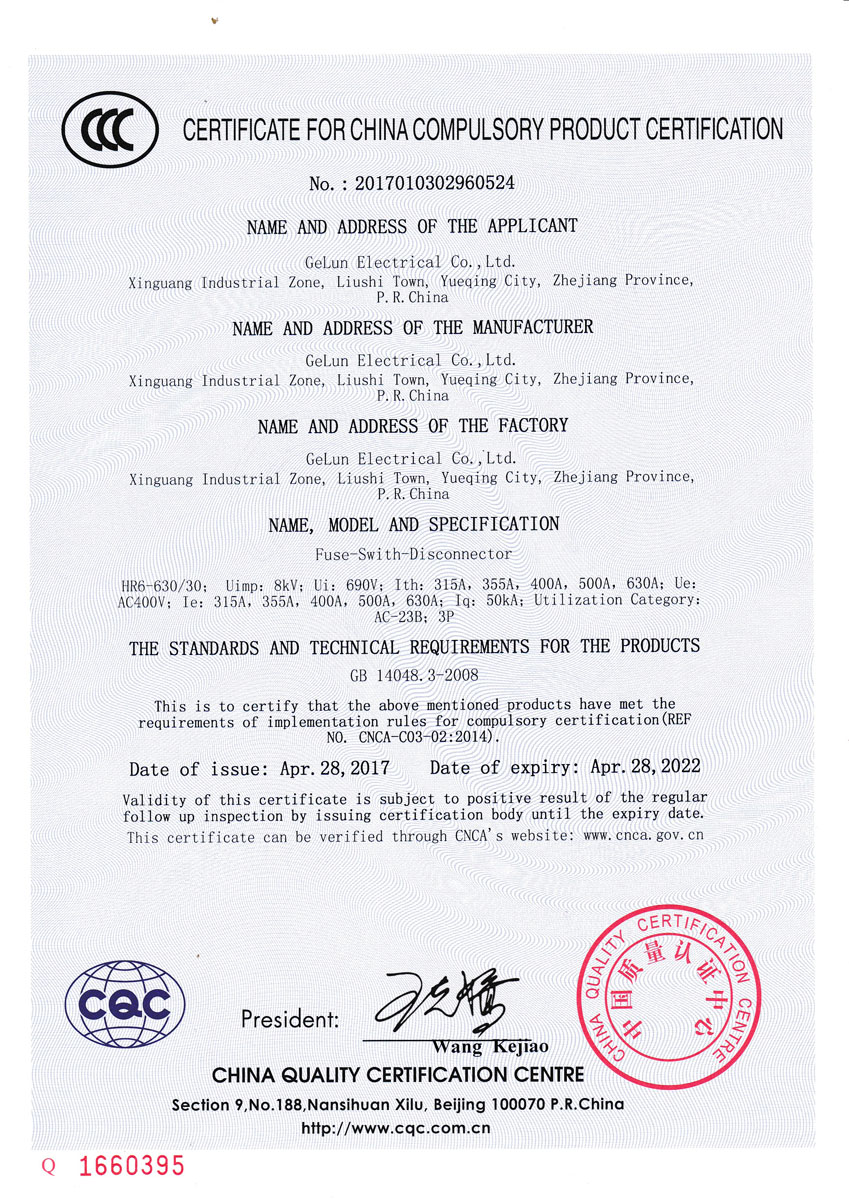

    Comply with the IEC60947-3、GB/T 14048.3 Standard
    Frame Size ：160、250、400、630A
    Current Grade：63-160A、200-250A、250-400、315-630A
    Rated Limit Short Circuit Current：Iq：50 kA
    Poles：3
